Commercial 3D Printers

Print Big, Open, Hot, & Dry

Plural sells industrial 3D printers from 3ntr for additive manufacturing including the A2V4 and the A4V4.

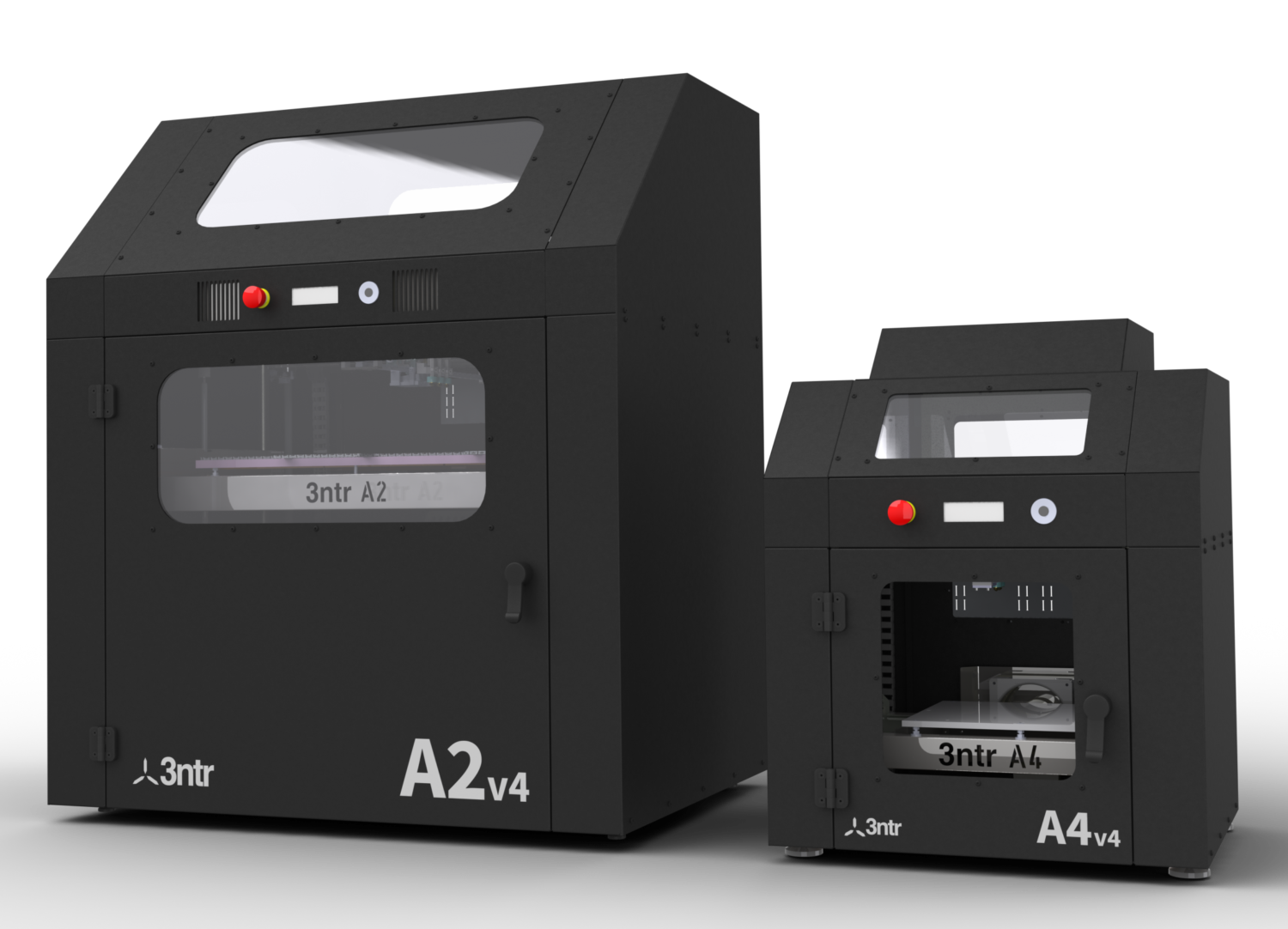

Industrial 3D printers from 3ntr. Models A2V4 and A4V4

HIGH PERFORMANCE printer

Print Big

with up to 600 x 350 x 500 mm (23.6 x 11.8 x 19.6 inch) build area

Print Open

because 3ntr supports open materials for filaments, Plural customers save up to 70% on operating expenses and have the widest range of materials.

Print Hot

with a high temperature 3D printer

  • Nozzle:    450º C  (842º F)
  • Bed:          160º C   (320º F)
  • Chamber:   90º C  (194º F)

Print Dry

with a material management system (MMS) from Plural that stores filaments in less than 5% relative humidity for smoother surface finishes and better layer bonding.

Print Multiple Materials at the Same Time

with three extruders print combinations of materials such as:

  • multi-color parts
  • multi-material parts
  • multiple parts in different materials per job

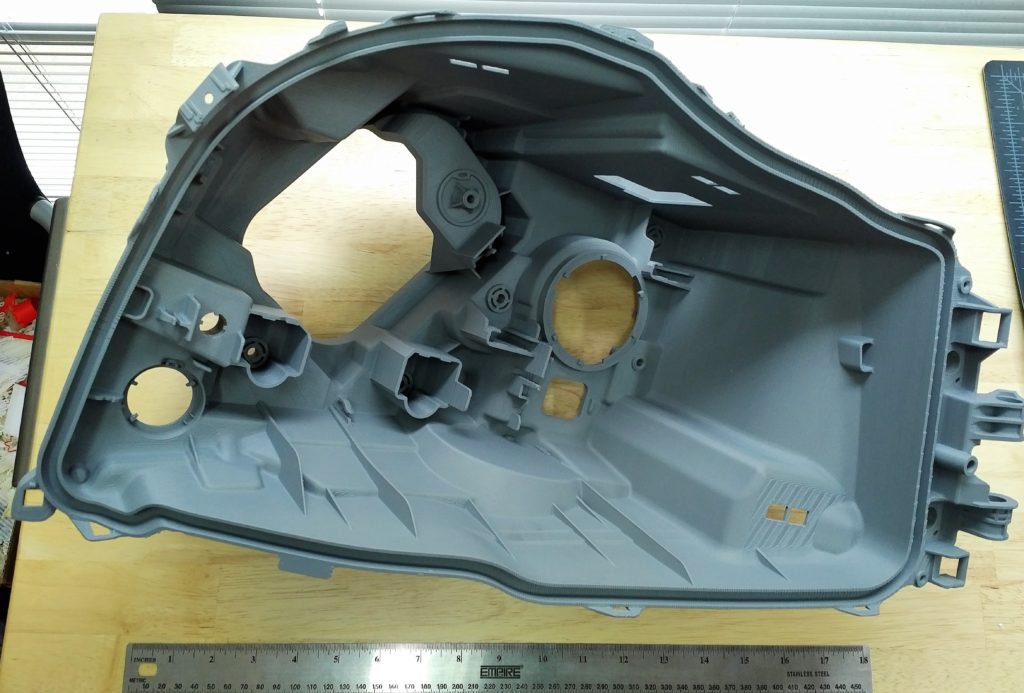

ABS headlight bucket in grey 3D printed by 3ntr

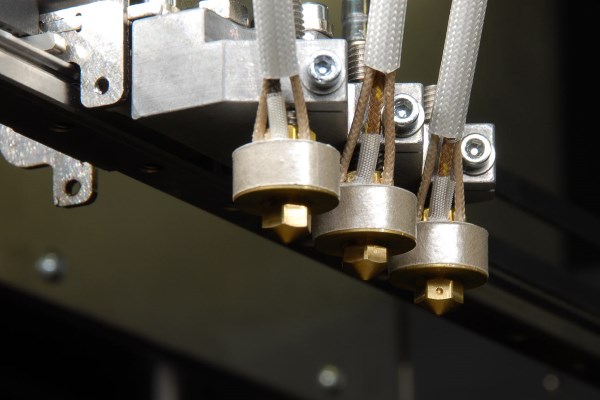

3ntr_A2_nozzles_2

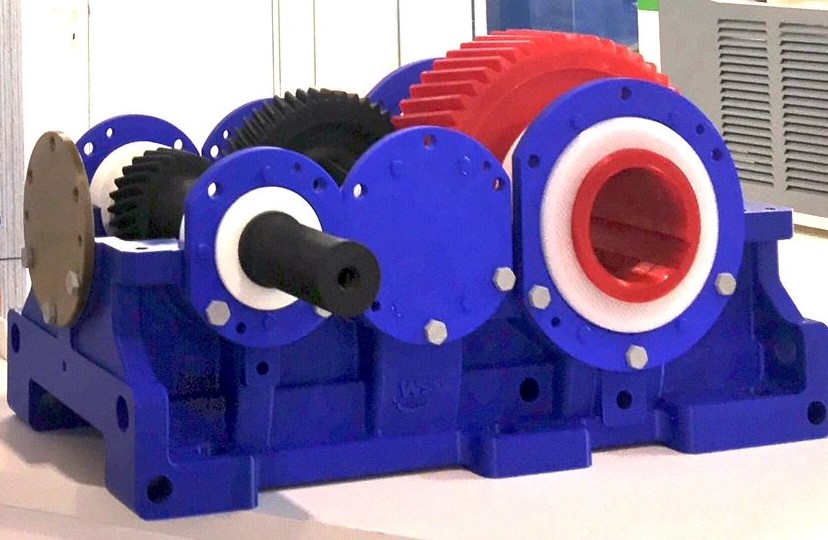

Gearshaft_12materials_1machine_cropped

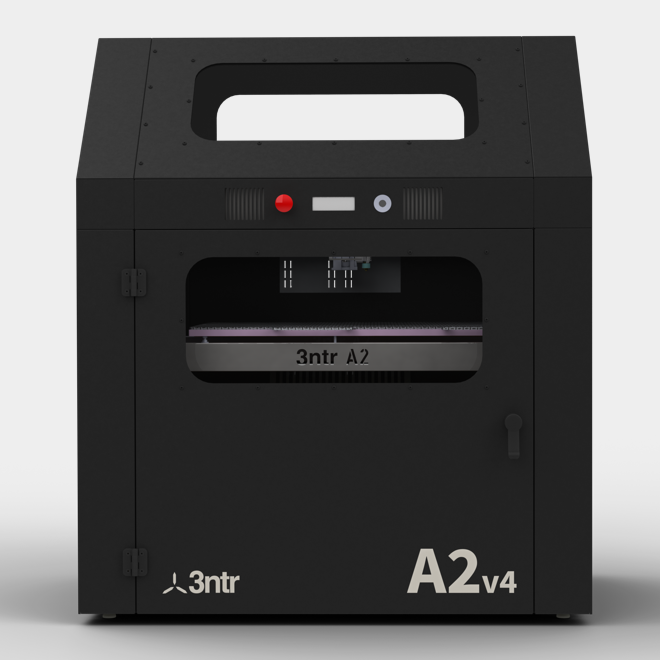

A2V4_render

STURDY, INDUSTRIAL BUILD QUALITY

Constructed with stainless steel components and resilient manufacturing controls for 24/7 performance.  The printers allow you to focus on production, not calibration.

LARGE VOLUME, HEATED BUILD CHAMBER

Our large (A4) and very large (A2) build plates give you the freedom and flexibility to build large parts with precision and accuracy. The interior temperature reaches 90º C for high quality prints in a variety of materials.

A2V4 build dimensions: 23.6” x 11.8” x 19.6”

A4V4 build dimensions: 11.6″ x 6.1″ x 7.8″

Additional Features

Standard on all Plural machines

Included Web Server
Included Web Server
HEPA Filter for 3ntr industrial 3D printer
HEPA Filter for 3ntr industrial 3D printer
Powerful Slicer Software
Powerful Slicer Software

PRINTER SPECS

PRINTING SPECIFICATIONS

Build Envelope

(WxDxH)

Number of Extruders

Positioning Precision – X-Y

Positioning Precision – Z

Positioning Precision – Extruders

Certified Materials*

Maximum Extruder Temperature

PLURAL A2 – 4NA & PLURAL A4 – 4NA

A2: 600 x 325 x 500mm, 23.62 x 12.79 x 19.68”

A4: 295 x 195 x 200mm, 11.61 x 7.67 x 7.87”

3

11 microns (.000433″)

5 microns (.0002″)

.9 Microns

nPower, ABS, ASA, PCABS, NylonCarbon, PETG, iGlide, TPU

450º C
