SPECTRAL 30

HIGH TEMPerature 3D PRINTING

WITH DESIGN FREEDOM

Plural sells high temperature industrial 3D printer, Spectral 30, from 3ntr in the US, Canada, and Mexico for additive manufacturing projects that require PEEK, Ultem, PEKK, and other PEI related polymers.

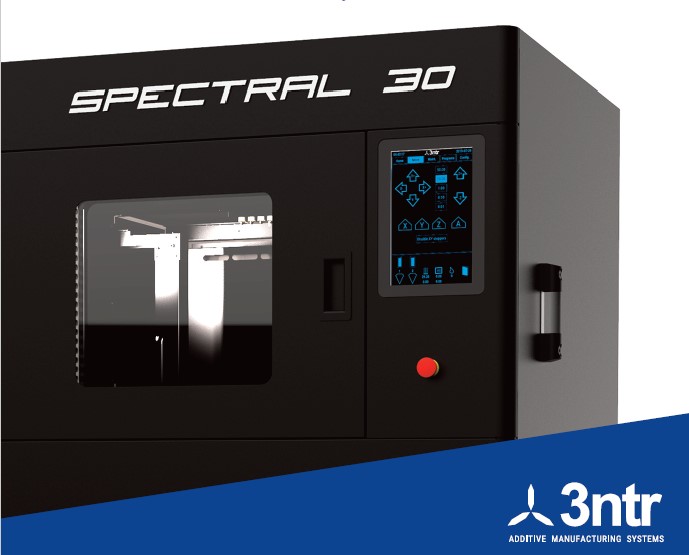

Spectral 30 PEEK Ultem PEKK 3D Printer

HIGH PERFORMANCE printer

Print Hot

with a high temperature extruder and chamber, the Spectral 30 can print all polymers on the market today and is ready for tomorrow:

  • Nozzle:      500º C  (932º F)
  • Bed:             300º C  (572º F)
  • Chamber:   250º C  (482º F)
  • Dryers:      110º C  (230º F)

PRINT DRY

with a low humidity storage chamber and cartridges that monitor and adjust to each spool of filament. The integrated Vento units  dry and store filaments for smoother surface finishes and better layer adhesion.

PRINT MULTIPLE MATERIALS AT THE SAME TIME

with four extruders print combinations of materials such as:

  • multi-color parts
  • multi-material parts
  • multiple parts in different materials per job

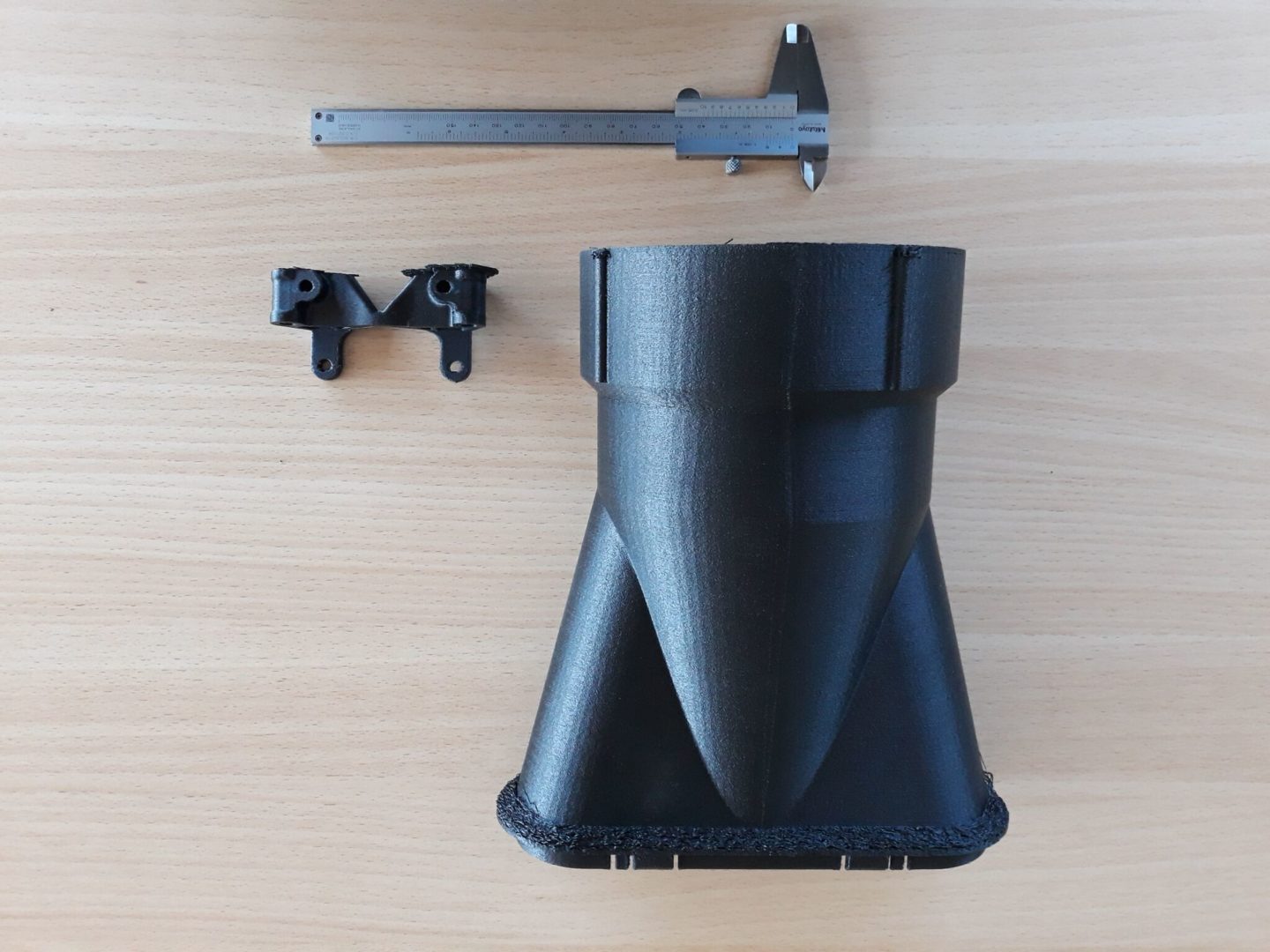

2018_Spectral_peek-carbon-preview

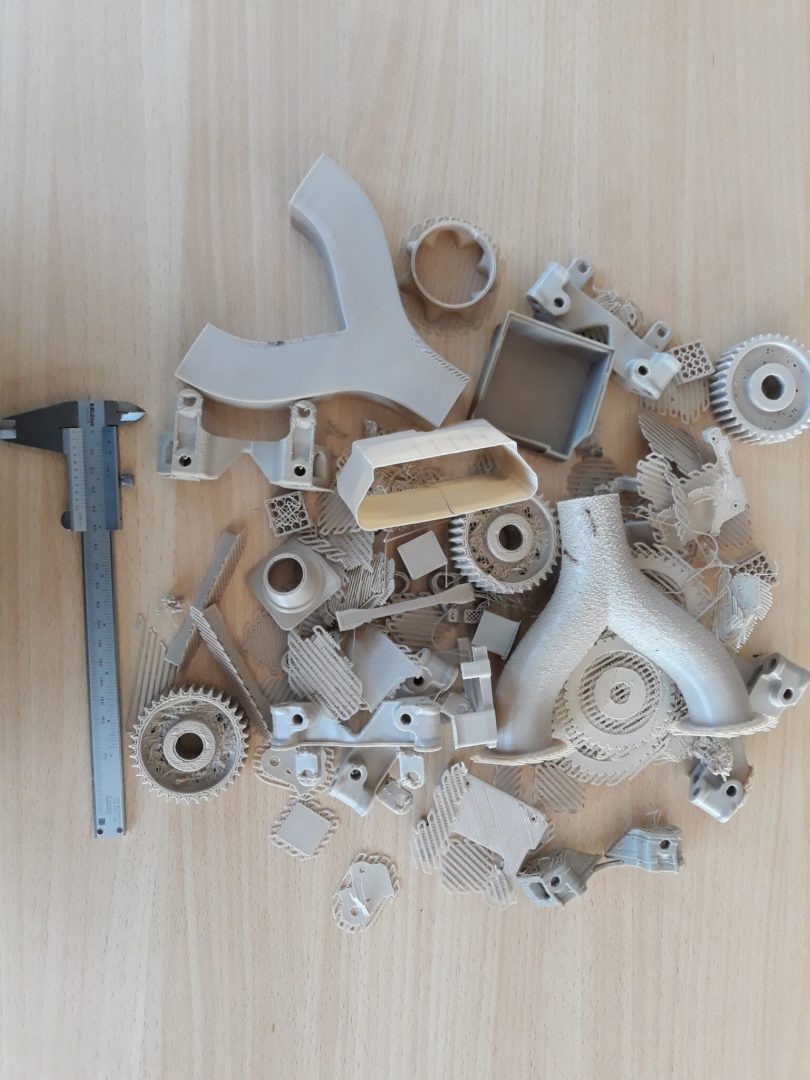

2018_Spectral_some-peek-tests-preview
SPECTRAL30-42

STURDY, INDUSTRIAL BUILD QUALITY

Constructed with stainless steel components and resilient manufacturing controls for 24/7 performance.  The printers allow you to focus on production, not calibration.

high temperature BUILD CHAMBER

Spectral 30 provides the freedom and flexibility to build PEI polymer parts. The interior temperature reaches 250º C for high quality prints in a variety of materials.  The liquid-cooled head means precise temperature control.

Spectral 30 build dimensions: 11.6″ x 11.6″ x 11.6″

large & Dry material capacity

Store four spools of material in active drying, humidity controlled Vento for high quality prints in a variety of materials.

Magnetic & Vacuum Tray holder

Easy and secure holding methods for 3D printing on reusable plates without noisy and resource consuming air compressors.

Filament Sensors

Spectral 30 uses sensors to monitor the spool and detect filament jams and the end of the spool.

Additional Features

Standard on all Plural machines

Spectral 30 PEEK Ultem PEKK 3D Printer
10 Inch touch screen
HEPA Filter for 3ntr industrial 3D printer
HEPA Filter for 3ntr industrial 3D printer
Powerful Slicer Software
Powerful Slicer Software

PRINTER SPECS

PRINTING SPECIFICATIONS

Build Envelope

(WxDxH)

Number of Extruders

Positioning Precision – X-Y-Z

Materials

Maximum Extruder Temperature

PLURAL Spectral 30

300 x 300 x 300 mm

11.6 x 11.6 x 11.6 inches

4

5 microns    (0.0002 inches)

Ultem AM9085F - PEEK - EKK - PAEK- PPSU - ABS - ABS_esd - ABS HD - ASA

500º C
